LED Display for Shelf
New Generation LED Shelf Display
- Slim & Lightweight Design
- Multi-installation Methods
- Little Space to Install
- Multiple Connection Ways
- Excellent Visual Display
UNIT Shelf LED Billboard
Can connect multiple smart shelf billboards to create a large screen or divide the screens to play multiple video product promotions.
Ultra Thin & Light Design
Display area: 300 × 60 × 21 mm
Super slim in depth and light in weight, 21mm thickness, easy to install and move. The ultra-thin case is convenient for transportation and packaging, saving your costs.
LED Module Design

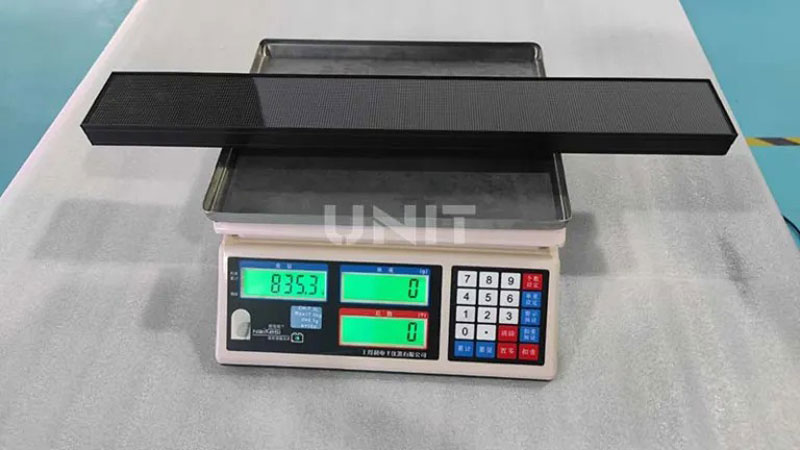

Lightweight Design
Perfect Product Makeup
GOB Technology on Modules: Provides enhanced protection against touch, impact, and water spray.
Excellent Visual Experience
GOB Technology & High Protection Capability
This enhances protection against physical damage and provides features such as anti-fog, dust-proofing, ease of cleaning, abrasion resistance, damp-proofing, anti-collision, antistatic properties, oil pollution resistance, and anti-oxidation.

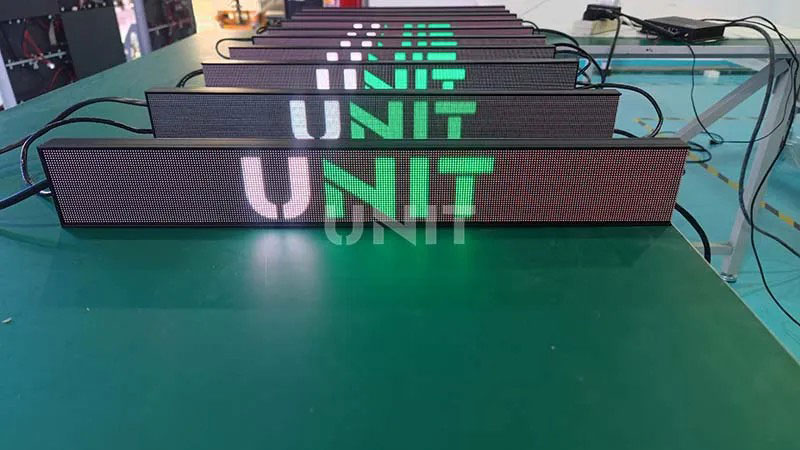

Shelf LED Display More Details
Video Center
Shelf LED Display
- Slim & Lightweight design
- GOB LED technology
- USB/ Wi-Fi/ HDMI / cable connection
- SMD 3 in 1 LED package technology
- CE, Rohs certification
- 3 Year Warranty and 5% Spare Part
Get Quotation Now
Specification
| Optical Parameter | Pixel Pitch (mm) | P1.2mm | P1.5mm | P1.875mm | P1.5625mm | P2mm |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | |
| Brightness (cd/sq.m.) | 800 | 800 | 800 | 800 | 800 | |
| Refresh Rate (Hz) | ＞3840 | ＞3840 | ＞3840 | ＞3840 | ＞3840 | |
| Optimized Viewing Distance (m) | 1~10 | 1~10 | 1~10 | 1~10 | 1~10 | |
| Electrical Parameter | Input Voltage | AC110V or AC220V±10%50/60Hz | ||||
| Input Interface | Ethernet / USB / Wi-Fi | |||||
| Structure Parameter | Module Size in Pixel (W×H) | 125×50 | 100×40 | 80×32 | 128×32 | 64×32 |
| Module Size in mm (W×H) | 150x60mm/300x120mm | |||||
| IP Rating | IP 40 | |||||
| Maintenance | Rear | |||||
| Operation Parameter | Operating Temperature/ Humidity (℃/RH) | -10℃~40℃/10~90RH% | ||||
| Certification | CCC / CE / ETL / FCC | |||||
Best Shelf LED Display Solution - 2025 Complete Guide
In an age where shoppers prioritize visually appealing stores, the shelf LED display changes how retailers, museums, exhibitions, and even offices present visual content. These LED shelf displays and strip screens integrate the vibrant and dynamic characteristics of LED technology with functional shelf design. They elevate visual appeal and function as an effective medium for communication and brand promotion.
This post will explain what digital LED shelf display is, analyze its benefits, and provide practical guidance on solutions, installation, and even building your own shelf LED screen project.
1. What is a Shelf LED Display?
2. Key Benefits of Shelf LED Screen
3. Applications of LED Display Shelf
4. Shelf LED Display vs Traditional Display Solutions
5. How to Choose the Best LED Strip Screen
7. UNIT LED Display Shelf Solution [Recommended]
8. Installation & Assembly & Maintenance Tips
1. What is a Shelf LED Display?
A shelf LED display is a compact, integrated LED screen designed to be embedded or mounted on a shelf, typically in a retail, exhibition or home environment. This bar display can display digital content such as text, images, videos and promotional information, dynamically presenting information in a small space.
LED Shelf displays are often used in retail environments to enhance product display, advertise and attract customers. Their flexibility in size, design and mounting makes them ideal for areas with limited space.

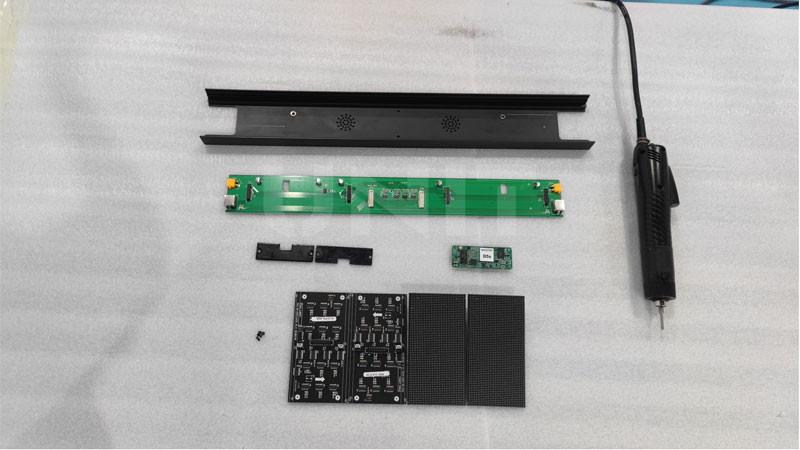

Key Components:
● LED Modules: At the heart of any LED display is the LED module. These modules are the building blocks of the display and determine the resolution and brightness of the display.
● Controller: LED controller is responsible for processing the video signal and ensuring that the content is accurately rendered on the display. We use the professional Colorlight LED controller to ensure the content display is stable and accurate.

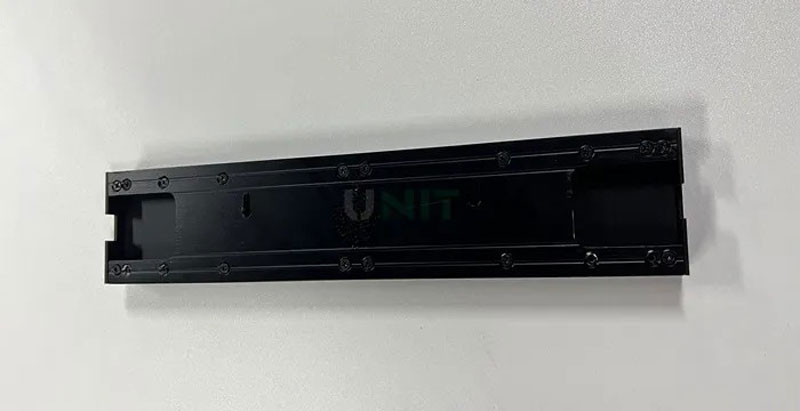

● Casing/Frame: The physical structure that holds the LED modules. When it comes to shelf LED displays, they are usually designed to be compact and lightweight.
● Power Supply: A reliable power supply is essential, and most shelf LED screens come with an integrated power solution to ensure uninterrupted operation.
Types:
- LED Edge Displays (slim design for premium stores)
- LED Direct-lit Panels (high brightness for large shelves)
- Custom LED Display Shelves (3D shapes for luxury brands)
2. Key Benefits of Shelf LED Screen
Why should retailers use LED display shelf instead of fluorescent light? Shelf LED display brings many benefits to various environments. Here are some of the main advantages:
Benefit 1. Dynamic display: Unlike traditional static labels, shelf LED displays can play dynamic content such as videos and animations to attract customers’ attention and increase product exposure.
Benefit 2. Real-time update: Merchants can remotely update display content through the backend system, adjust prices and promotional information in time, and reduce the cost and errors of manual label replacement.
Benefit 3. Energy saving and environmental protection: The use of LED technology has low power consumption and long service life, which meets the concerns and needs of modern consumers for environmental protection.
Benefit 4. Enhance brand image: Exquisite display effects and personalized content display help to shape a unique brand image and enhance customers’ recognition and loyalty to the brand.
Benefit 5. Enhance shopping experience: By providing rich product information and interactive content, shelf LED screens enhance customers’ shopping experience and increase shopping fun and satisfaction.
Benefit 6. Customization and flexibility: Whether you need to display product information, advertisements or artistic visual effects, LED displays for shelf can be customized according to your content needs.

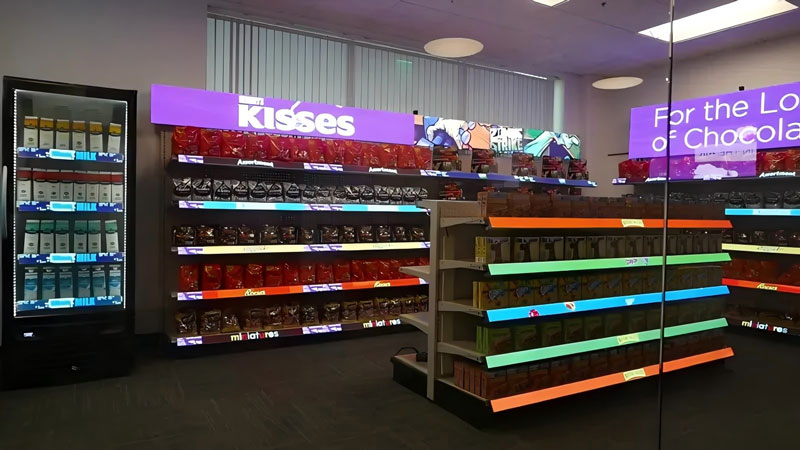

3. Applications of LED Display Shelf
Digital shelf LED display screens are widely used in many fields due to their ultra-thin, energy-saving and high-brightness characteristics. The following are its main application scenarios:
Application 1. Retail application:
- Dynamic display of goods: On supermarket and convenience store shelves, LED screens are used to play product advertisements and discount information in a loop to increase consumer stay rate.
- Smart price tag replacement: Replace paper labels, synchronize price adjustments in real time (such as promotions during fresh food periods), and reduce manual errors and replacement costs.
Application 2. High-end product application
- Luxury product display: Jewelry stores and watch counters use high-color LED screens to restore diamond fire or metallic luster and enhance the perception of product premium.
- Brand story interaction: Embed brand history short films in the display screen to enhance the experience.
Application 3. Exhibition & Display
- Exhibition display: In exhibitions and museum displays, LED shelf displays can dynamically play product videos and interactive content to enhance the display effect and attract visitors’ attention.
- Library smart recommendation: Display book ratings and borrowing popularity on the side of the bookshelf to assist readers in quick screening.
Application 4. Special environment adaptation solution
- Compliance display in the pharmaceutical industry: LED display shelves on drugs simultaneously display drug contraindications and medical insurance logos to avoid legal risks.
- Cold chain visualization: The refrigerator has a built-in anti-fog LED screen (IP65 waterproof) to display the shelf life and origin information of frozen products.
Application 5. Catering and hotel applications
Use LED strip screens to display special dishes, promotions, and brand promotions, or use LED liquor bottle display shelf to create a fashionable atmosphere and enhance customer experience and satisfaction.
Application 6. Smart home
In the home environment, the shelf LED display can display schedules, weather forecasts and personalized information, adding a sense of technology to home life.
4. Shelf LED Display vs Traditional Display Solutions
Smart shelf LED display screens are superior to traditional price tags in terms of dynamic display, real-time update, visual effects, interactivity, energy conservation, environmental protection, and maintenance cost reduction, and have become an important tool for retailers to improve sales and brand image. Here is a detailed comparison of shelf LED screens and traditional price tags:
| Contrast Dimensions | Shelf LED Display | Traditional Price Tags |
| Display mode | Dynamic display, supports multimedia content such as video and animation | Static display, limited to text and pictures |
| Information update | Real-time remote update, quick adjustment of prices and promotional information | Requires manual replacement, low efficiency |
| Visual effect | High brightness and high contrast to attract customers’ attention | Limited visual effect and easy to be ignored |
| Interactivity | Supports touch interaction to enhance customer experience | No interactive function |
| Energy conservation & environmental protection | Powered by LED technology, low power consumption and long life | Need to be replaced frequently, waste of resources |
| Maintenance cost | Easy to maintain, supports remote monitoring | Requires manual replacement, high maintenance cost |

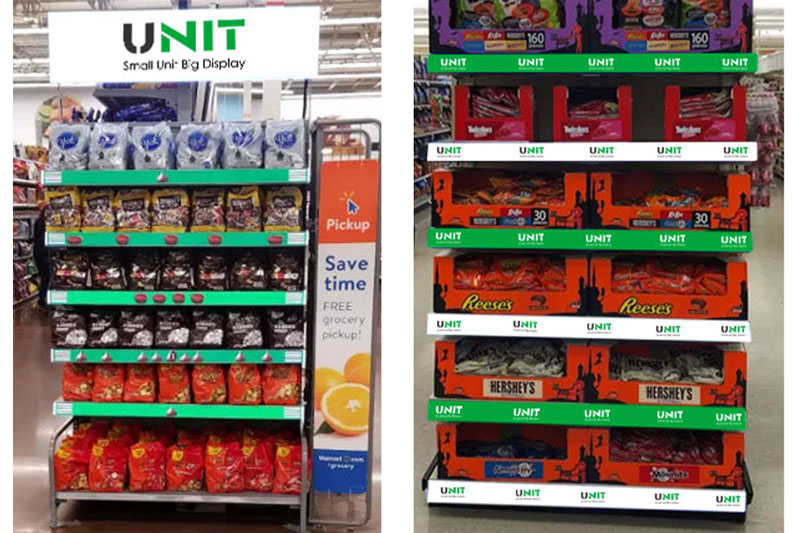

5. How to Choose the Best LED Strip Screen
How to select the optimal digital shelf LED display for your events? Choosing the most suitable shelf LED screen requires evaluating multiple factors. Below are some essential aspects to consider:
① Resolution and Pixel Pitch
- High Definition: Make sure the LED display provides high definition that matches your specific needs. The higher the pixel density, the clearer the image and the richer the details.
- Pixel Pitch: For fine-pitch displays, a smaller pixel pitch is preferred for sharper images.
② Size and Form Factor
- Compactness: Given the limited space on shelves, the display must be compact without compromising performance.
- Customizability: Look for products that offer customizable sizes and shapes, allowing you to design a display that fits your unique requirements.
③ Connectivity and Control
- Input Options: Check for compatibility with various input signals, such as HDMI, DVI, or even wireless connectivity.
- Control Systems: Advanced displays offer remote management and control features, enabling you to update content and troubleshoot issues without physical access.
④ Durability and Maintenance
- Build Quality: Choose displays with robust construction that can withstand continuous operation in public or high-traffic areas.
- Ease of Maintenance: Modular designs and remote update capabilities can significantly reduce the hassle of ongoing maintenance.
⑤ Budget Considerations
- Cost vs Performance: While high-end displays offer superior performance, ensure that your investment aligns with your budget and usage needs.
- Energy Efficiency: Opt for energy-efficient models to save on long-term operational costs.
6. LED Shelf Display Price
As an innovative display tool in the retail industry, the shelf LED display price is affected by many factors. When purchasing shelf LED display, you need to choose cost-effective products based on actual needs and budget.
① Screen size and resolution: The larger the screen size and the higher the resolution, the higher the price will usually be.
② Brightness and color performance: High brightness and rich color performance require more advanced display technology and high-quality materials, leading to price increases.
③ Technology and quality: Advanced technologies such as high refresh rate and wide color gamut improve display effects, but also increase production costs.
④ Brand and after-sales service: Well-known smart shelf LED screen brands usually provide more complete after-sales service and are relatively expensive.
7. UNIT LED Display Shelf Solution [Recommended]
As a professional LED display manufacturer, UNIT smart LED shelf display is a slim LED advertising screen designed for impactful and creative visual marketing. You can upload content via USB, Wi-Fi, 4G, or the Internet. You can connect multiple Smart Shelf LED Price Tags to create a large screen, or split the screen to play multiple video product promotions. UNIT shelf LED panel is light enough to be mobile and large enough to be seen from a distance.

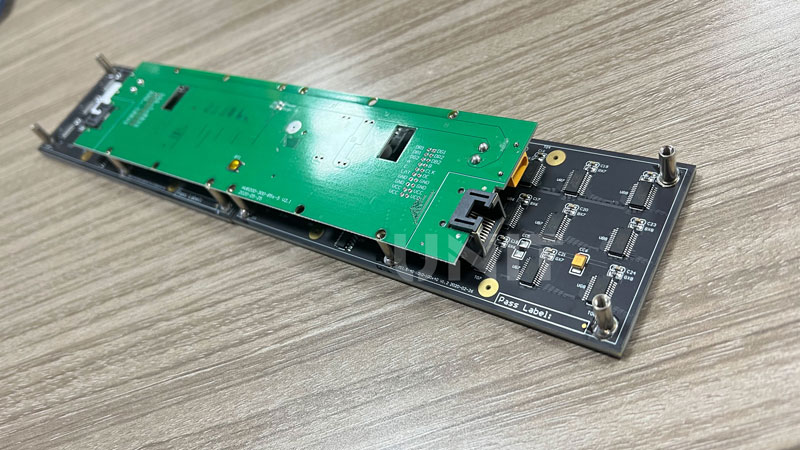

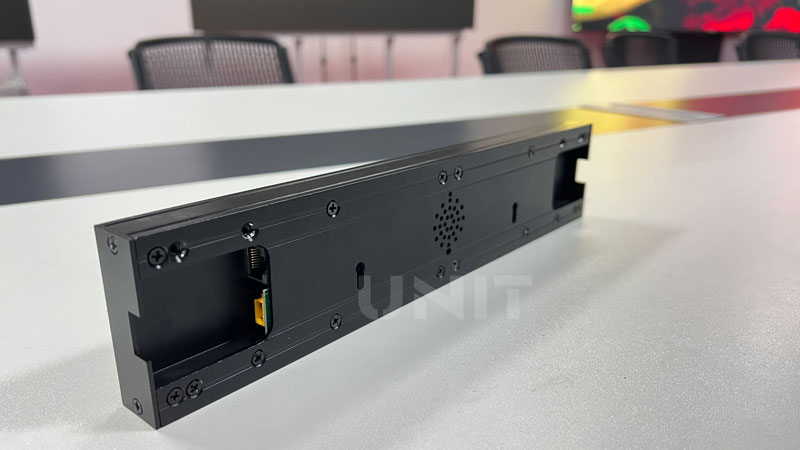

UNIT Shelf LED Panel Advantages:

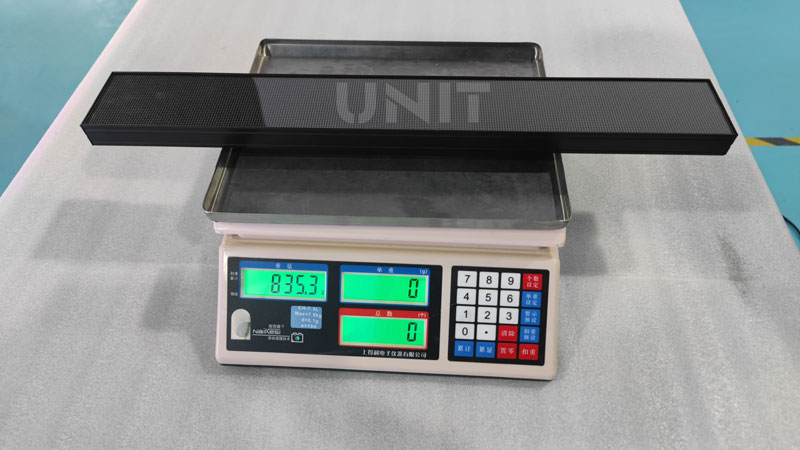

- Super slim in depth and light in weight.

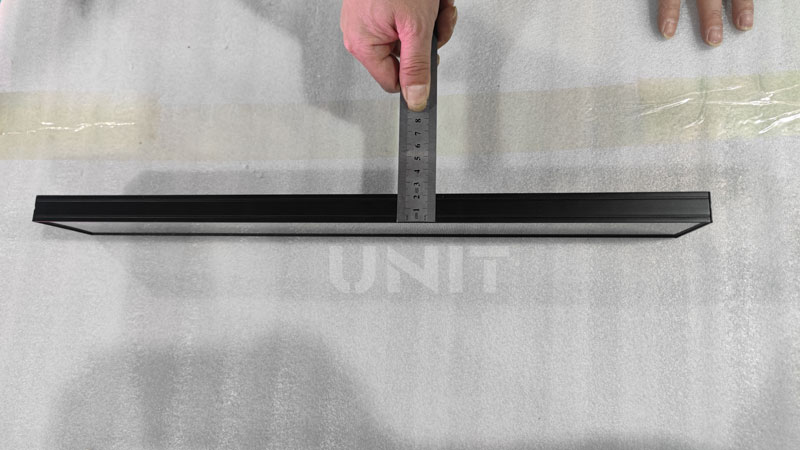

- 22mm thickness, easy to install and move.
- Multiple installation modes, such as stand, wall-mounted, etc.
- Plug-in display, simple operation.
- Multiple linkage modes, such as single display application, cascaded application, creative application, etc.
- USB/ Wi-Fi/ HDMI / cable connection; mobile phone & PC quick management & publish.
- LAN integrated publish & remote publish via the internet.
- Calibration data saved on modules, recover factory settings in 5s.

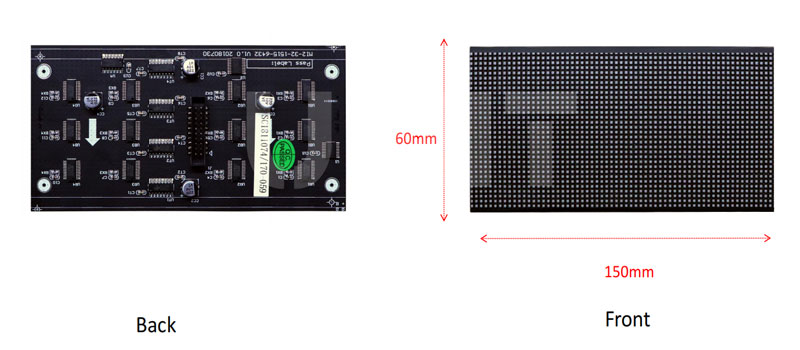

GOB Module Technology
The shelf LED display module is made with GOB LED module craft to offer an excellent visual experience. The TOP-GOB process coats the PCB board with epoxy resin, fully sealing it to enhance protection against physical damage. This also provides anti-fog, dust-proof, easy-to-clean, abrasion-resistant, damp-proof, anti-collision, antistatic, oil-resistant, and anti-oxidation properties.
The LED shelf display modules of 150X60mm, 300x120mm, 200x50mm, 200×150, 200x100mm, 128x128mm, and 128x64mm are available.

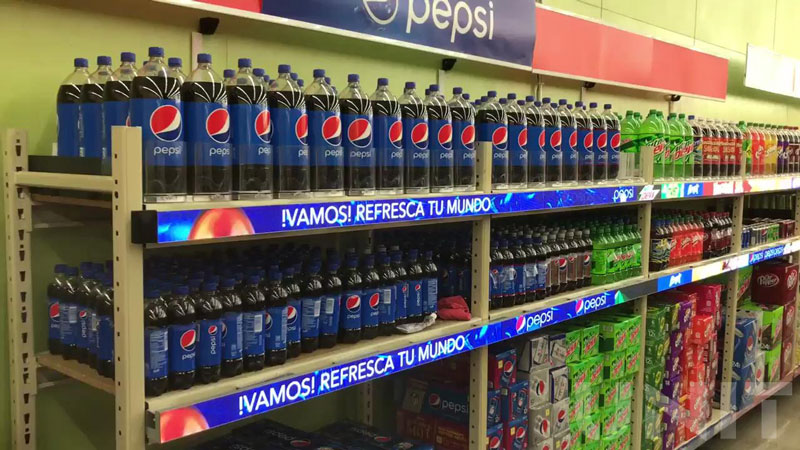

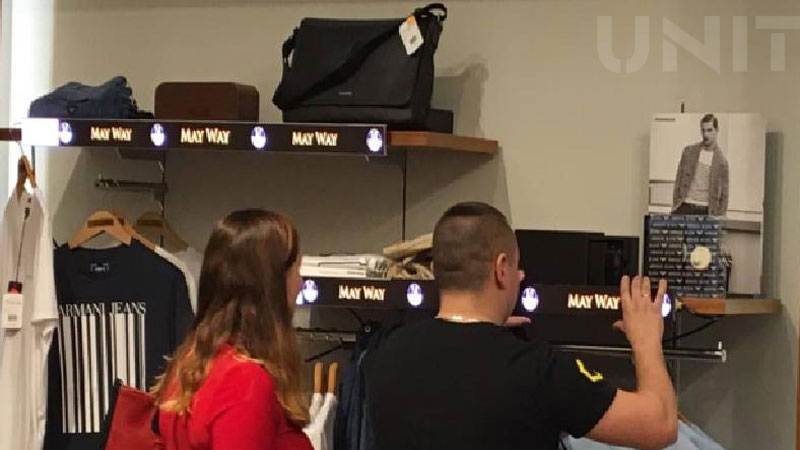

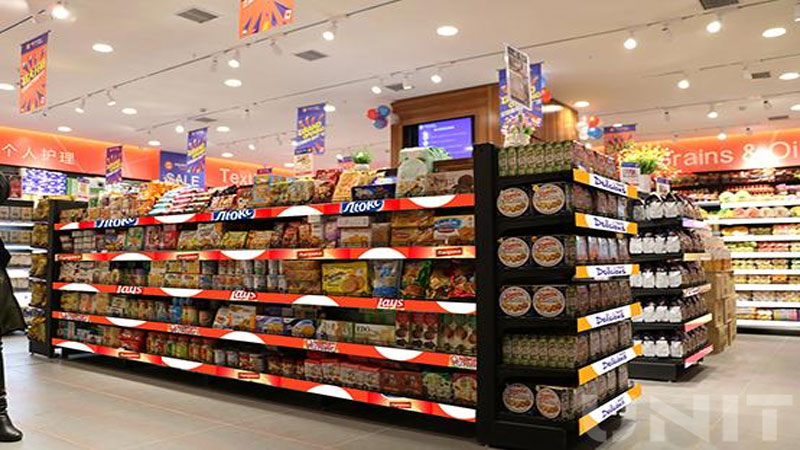

Case Showcase
8. Installation & Assembly & Maintenance Tips
Shelf LED Screen Assembly
Step 1. Connect the adapter board to the LED module, ensuring correct orientation.
Step 2. Connect the internal network cable and power cable securely.
Step 3. Install the cover and fasten it with screws.
For detailed instructions, please refer to the accompanying video.
LED Shelf Display Installation
Step 1. Use M6X14 screws to fix the screen
Step 2. Use M3X6 screws to fix the screen and folding board
Step 3. Use drilled screws to fix the other side of the screen and folding board to the hanger
Step 4. ② Effect picture
Maintenance Tips
Tips 1. Regular Cleaning: Dust and debris can accumulate on LED modules, affecting brightness and color accuracy. Clean your display regularly using appropriate tools.
Tips 2. Firmware Updates: Keep the controller firmware updated to benefit from the latest performance improvements and security patches.
Tips 3. Monitor Performance: Use remote monitoring tools to track the performance and health of your display. Look out for any issues such as dead pixels or connectivity problems.
Tips 4. Scheduled Inspections: Regularly inspect the installation for any loose connections or wear and tear, especially in high-traffic areas.
9. How to Control LED Shelf Display
There are 3 control ways for digital shelf LED display:
Way 1. Control box mode
Content playback and management are achieved through a dedicated control box. Users can use the control box to upload and update playlists, adjust display content in real time, and achieve centralized management. The control box integrates management software, which can accurately schedule each display screen to ensure synchronous and smooth images.
Way 2. Router control mode
Use the LED shelf display router application to connect each display unit through a local area network or Wi-Fi. The playback software distributes the preset content to each screen through the network to achieve multi-screen linkage control. This method is suitable for large-scale and widely distributed retail environments, which is convenient and flexible.
Way 3. Cloud remote control
Connect dedicated control devices (such as TB6) to the Internet, and users can achieve remote management through the cloud platform. No matter where you are, you can monitor, update and adjust the display content in real time. Cloud control not only improves management efficiency, but also reduces on-site maintenance costs.
In addition, the shelf LED screen system supports multiple linkage modes, including USB, Wi-Fi, HDMI and wired connections, and provides a quick management interface for mobile and PC terminals. Calibration data can be saved in the module, supporting quick recovery of factory settings.
10. Conclusion
Shelf LED display represents a major leap forward in digital signage and LED technology. With their compact design, high-resolution output, and flexible integration options, these displays offer numerous benefits for a wide range of applications – from retail and corporate environments to smart home projects. Contact us to start your project now!
