LED display pixel pitch is the distance, in millimeters, between the centers of two adjacent LED pixels. It decides how sharp the image looks, how close viewers can stand, and how much you pay per square meter. Pick the wrong pixel pitch and you either see visible dots from three meters away, or you pay for detail nobody in the room can see.
Table of Contents:
- 1. What Is Pixel Pitch in an LED Display?
- 2. Pixel Pitch vs. Resolution: Related but Not the Same
- 3. The Viewing Distance Rule: How Close Is Too Close?
- 4. Pixel Density: What Each Pitch Actually Gives You
- 5. How to Choose Pixel Pitch by Application
- 6. How Pixel Pitch Affects Price
- 7. Common Pixel Pitch Mistakes to Avoid
- 8. LED Display Pixel Pitch FAQ
1. What Is Pixel Pitch in an LED Display?
On any LED screen, each pixel is a cluster of three tiny diodes: one red, one green, one blue. Pixel pitch measures the gap from the center of one cluster to the center of the next, in millimeters, both horizontally and vertically.
A P2.5 panel has pixels 2.5 mm apart. A P1.2 panel packs them 1.2 mm apart. The smaller the number, the tighter the pixels sit together, and the cleaner the image looks at close range.
Think of it like the weave in fabric. From across the room, coarse burlap looks solid. Up close, you see every thread. LED screens work the same way.
What Does P1.5, P2.5, P4 Mean?
The “P” is just shorthand for pitch, and the number is the distance in millimeters. P2.5 means 2.5 mm. P4 means 4 mm. Nothing more complicated than that.
You will see these labels everywhere in product listings, because pitch is usually the first spec a buyer checks. It is also the spec most often chosen wrong. The rest of this guide shows you how to get it right.

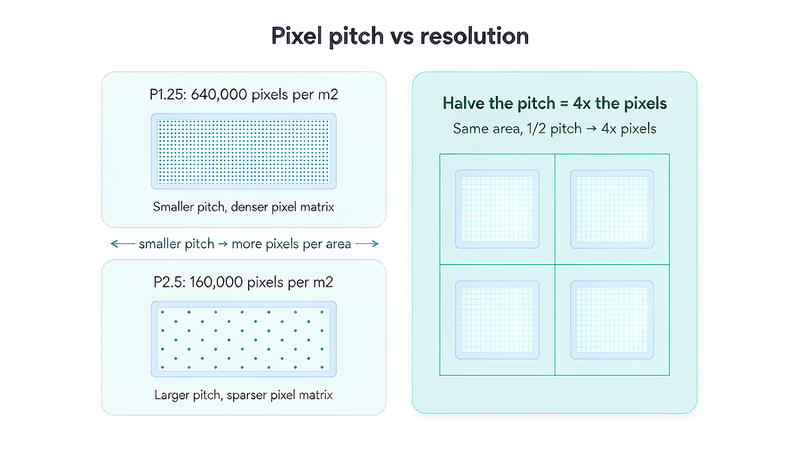

2. Pixel Pitch vs. Resolution: Related but Not the Same
People mix these two up all the time, and it costs them money.
Pitch is spacing. Resolution is count. Pitch describes the physical gap between pixels. Resolution describes how many pixels the whole screen has, written as width by height, like 1920 x 1080.
They are connected: for a fixed screen size, a smaller pitch means more pixels fit in the same area, so resolution goes up. Halve the pitch and the pixel count roughly quadruples. But the same P2.5 panel gives you far more total pixels as part of a 10-meter wall than as a 2-meter screen. Pitch is fixed per panel; resolution depends on how many panels you use.
So when a supplier says “higher resolution,” ask what size wall they mean. Resolution only means something together with physical dimensions. Our guide to LED display resolution covers that calculation in detail.

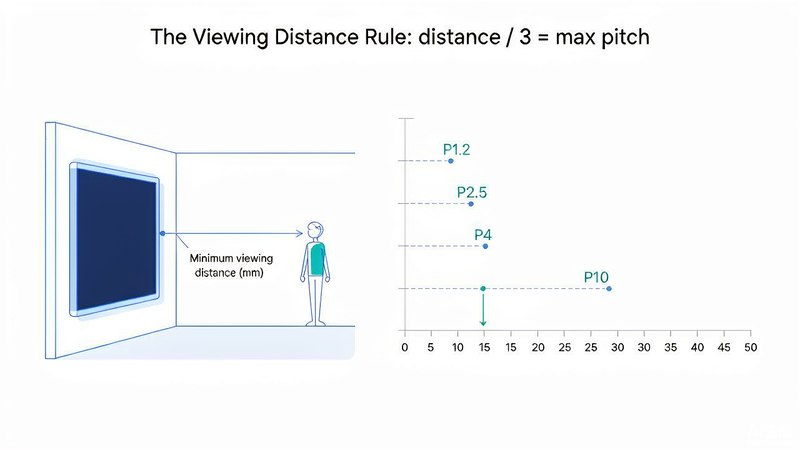

3. The Viewing Distance Rule: How Close Is Too Close?
Here is the practical heart of this topic. The human eye can only separate details down to a certain angle. Beyond a certain distance, the gaps between LED pixels simply disappear, and the screen looks like a continuous image.
The most common rule of thumb: 1 mm of pitch per 1 meter of minimum viewing distance, or more precisely, pitch in mm equals distance in meters divided by 3. A P2.5 screen looks smooth from about 7.5 meters out. A P1.2 screen holds up from roughly 3.6 meters.
Stand closer than that and you start to see the grid. Stand farther and any finer pitch buys you nothing.

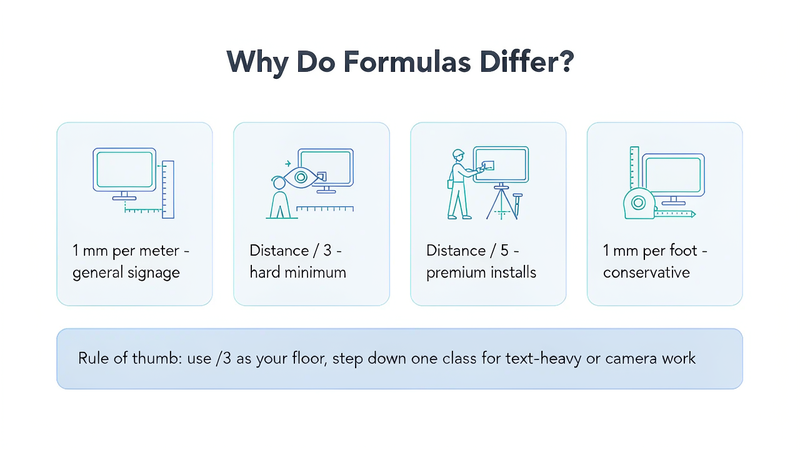

3.1 Why Every Brand Uses a Different Formula
If you have researched this topic, you have probably noticed something odd. The formulas disagree.
- Some vendors say 1 mm of pitch per meter of distance.
- Others multiply pitch by 2.5 to get the ideal distance.
- Some use pitch divided by 3 for standard quality and divided by 5 for premium installations.
- One well-known manufacturer suggests 1 mm per foot, which is close to 1 mm per 0.3 meters.
That is a spread of roughly three to one. Which one is right?
Honestly, all of them, for different goals. The divided-by-3 rule marks where pixelation stops being obvious. The divided-by-5 rule marks where the image looks flawless even to a critical eye at close range. The 1-mm-per-meter rule is a conservative middle ground for general signage.
Our suggestion: use the divided-by-3 figure as your hard minimum, then step down one pitch class if your audience includes close viewers, text-heavy content, or camera work. That single adjustment covers most real projects without the cost of chasing the finest pitch available.
| Minimum viewing distance | Max pitch (divide by 3) | Premium pitch (divide by 5) |
|---|---|---|
| 2 m | P0.7 | P0.4 |
| 3 m | P1.0 | P0.6 |
| 4 m | P1.3 | P0.8 |
| 5 m | P1.7 | P1.0 |
| 8 m | P2.7 | P1.6 |
| 10 m | P3.3 | P2.0 |
| 15 m | P5.0 | P3.0 |
| 20 m | P6.7 | P4.0 |

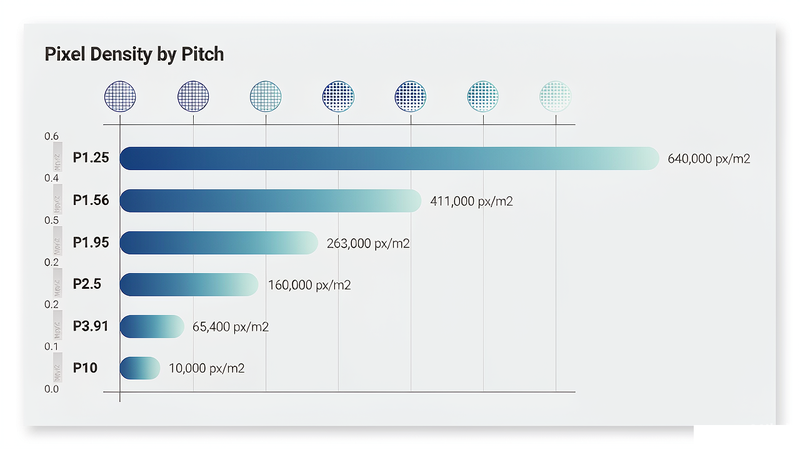

4. Pixel Density: What Each Pitch Actually Gives You
Pixel density also tells you exactly how many pixels fit in one square meter. The formula is simple: divide 1,000 by the pitch in mm, square the result, and you have pixels per square meter.
| Pixel pitch | Pixels per m² | Typical module resolution |
|---|---|---|
| P1.25 | 640,000 | 200 x 100 mm module, 160 x 80 px |
| P1.56 | 411,000 | 200 x 100 mm module, 128 x 64 px |
| P1.95 | 263,000 | 200 x 100 mm module, 100 x 50 px |
| P2.5 | 160,000 | 200 x 100 mm module, 80 x 40 px |
| P3.91 | 65,400 | 250 x 250 mm module, 64 x 64 px |
| P4.81 | 43,200 | 250 x 250 mm module, 52 x 52 px |
| P10 | 10,000 | 320 x 160 mm module, 32 x 16 px |
These are real production numbers, not theory. For example, our MA250 indoor fine-pitch series ships in six pitch options from P1.25 to P3.91, and the module resolution scales exactly this way: the P1.25 module carries 160 x 80 pixels in a 200 x 100 mm footprint, while the P3.91 module carries 64 x 64 in 250 x 250 mm.
Notice how steep the curve is. Going from P2.5 to P1.25 is only one step on the catalog page, but it multiplies pixel density by four. That is why the price curve is steep too, which we cover in section 6.
If you are planning a wall of a specific size, this is also where LED cabinet size comes in. Cabinet dimensions and pitch together decide the exact resolution of your finished wall.

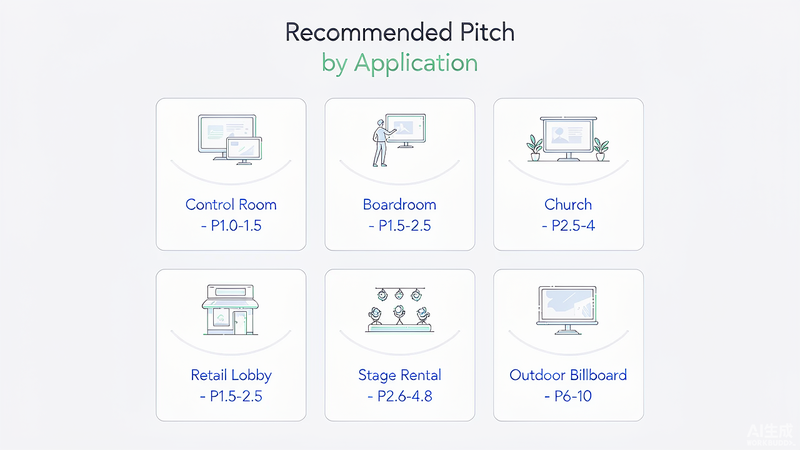

5. How to Choose Pixel Pitch by Application
Viewing distance gives you the math. Application gives you the starting point. Here is how common projects map out in practice.
| Application | Typical closest viewer | Recommended pitch |
|---|---|---|
| Control room / broadcast studio | 1-3 m | P1.0 – P1.5 |
| Corporate boardroom | 3-6 m | P1.5 – P2.5 |
| Church auditorium | 5-15 m | P2.5 – P4 |
| Retail / lobby feature wall | 2-6 m | P1.5 – P2.5 |
| Rental stage / concert backdrop | 5-20 m | P2.6 – P4.8 |
| Outdoor billboard | 15 m+ | P6 – P10 |
5.1 Fine Pitch vs Standard Pitch Indoors
Indoor projects dominate the fine-pitch category. Anything below P2.5 lives almost entirely inside, where lighting is controlled and viewers get close. A fine pitch LED display makes sense when your content includes small text, dashboards, spreadsheets, or detailed product visuals.
If your content is mostly video loops and brand animation viewed from mid-distance, a P2.5 to P3.9 panel delivers nearly the same perceived quality at a much friendlier price. Fine pitch is a tool, not a status symbol.
5.2 What About Rental and Staging?
Rental and staging projects have an extra requirement: cameras. If your event will be filmed or live-streamed, pitch alone does not settle image quality. The screen also needs a high refresh rate to avoid scan lines and flicker on camera.
For example, our MY rental series runs refresh rates from 3,840 Hz up to 7,680 Hz across its P1.56 to P4.81 range, with brightness uniformity above 98%, specifically so stage screens hold up under broadcast cameras. For stage backdrops viewed from 10 meters or more, P2.9 to P3.9 is the workhorse range; go finer only when front rows or camera close-ups demand it.

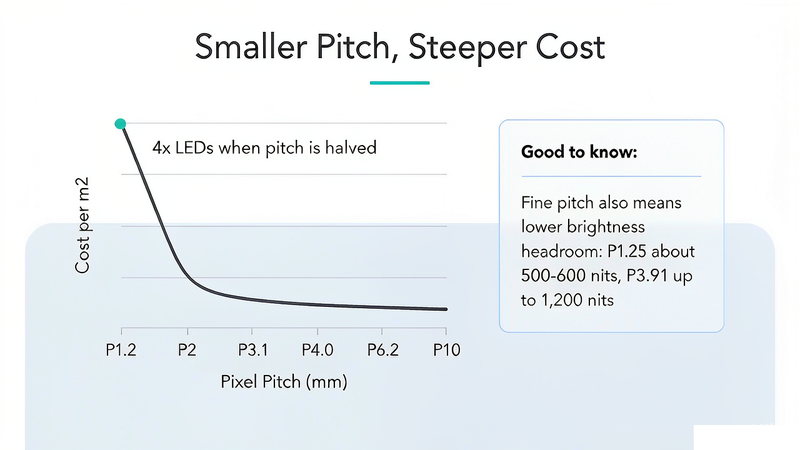

6. How Pixel Pitch Affects Price
Here is the rule every buyer should memorize: as pitch shrinks, cost per square meter climbs steeply.
The reason is simple physics. Halving the pitch squeezes roughly four times as many LEDs into the same area. More diodes mean more material, more precise assembly, tighter quality control, and more data for the driver system to push. Every one of those steps adds cost.
Fine pitch also changes the engineering around the LEDs. Tighter spacing leaves less room for heat to escape, so brightness headroom drops. In production terms, a P1.25 indoor panel typically tops out around 500-600 nits, while the same cabinet family at P3.91 can reach 1,000-1,200 nits. If your installation needs high brightness and a very fine pitch at once, you are paying for advanced thermal design, not just LEDs.
None of this means fine pitch is overpriced. It means the money should follow the viewing distance. A P1.25 screen watched from 10 meters wastes budget that could have bought a bigger wall, a better processor, or spare modules. Match the pitch to the room, then spend what is left where viewers will actually notice it.

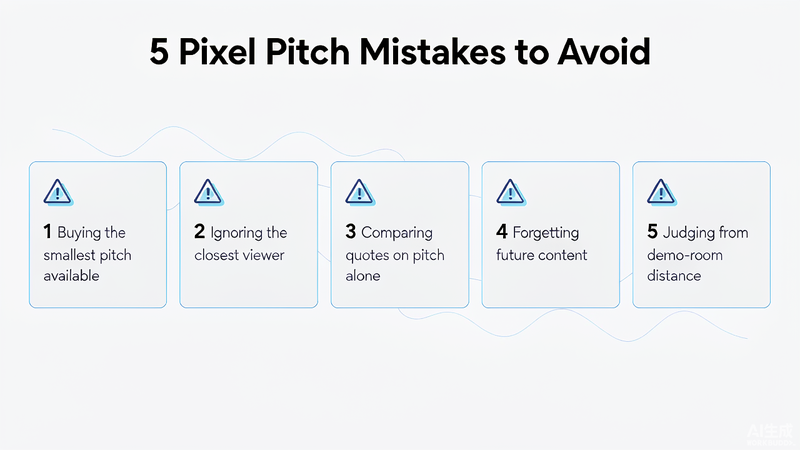

7. Common Pixel Pitch Mistakes to Avoid
Mistake 1: Buying the smallest pitch available. The most expensive error in LED purchasing. Extra density is invisible beyond the viewing distance threshold. A P0.9 wall viewed from 8 meters looks identical to a P2.5 wall from the same spot, at several times the price.
Mistake 2: Ignoring the closest viewer. Average viewing distance is a trap. One row of seats or one reception desk at 3 meters sets your pitch requirement, even if everyone else stands at 10.
Mistake 3: Comparing quotes on pitch alone. Two P2.5 screens are not the same product. LED grade, driver ICs, refresh rate, calibration, and cabinet build all vary. A cheap P2.5 can look worse than a quality P4. Judge the complete package.
Mistake 4: Forgetting future content. A lobby wall that shows brand videos today may run dashboards or data panels next year. If a change of use is likely, spec the pitch for the harder case now. You cannot retrofit a finer pitch later.
Mistake 5: Demo-room eyes. Judging a screen at arm’s length in a showroom, when your real audience will stand at 12 meters, leads to overspending every time. Always evaluate from the actual viewing distance.
8. LED Display Pixel Pitch FAQ
8.1 Can you see individual pixels on an LED screen?
Only if you stand closer than the minimum viewing distance for that pitch. Beyond roughly 3 times the pitch in meters, the individual dots blend into a continuous image for the human eye.
8.2 Is fine pixel pitch worth the extra cost?
It depends entirely on viewing distance and content. For close-range text, dashboards, or broadcast work, absolutely. For video content viewed from more than 8-10 meters, finer pitch adds cost without any visible benefit.
8.3 What pixel pitch do I need for outdoor displays?
Most outdoor billboards and large facade screens use P6 to P10, because viewers are far away. Storefront and street-level screens that face pedestrians work better at P2.5 to P4.
8.4 Does a smaller pixel pitch mean better quality?
Better up close, yes. Better overall, no. Pitch is one spec among several. Refresh rate, brightness, calibration, and LED grade matter just as much, and over-specifying pitch is the most common way buyers waste budget.
Get the Right Pitch for Your Project
Pixel pitch looks technical, but the decision comes down to one question: how close will your closest viewer stand? Measure that distance, apply the divide-by-3 rule, step down one class for text-heavy or camera-facing content, and you have your answer.
If you want a second opinion on a specific room or stage plan, contact us with your dimensions and content plans. We will recommend a pitch that fits the viewing distance, not the sales margin.
