320*320mm P13.33 Outdoor DIP LED Module
The 320*320mm P13.33 DIP outdoor LED module panel features DIP technology and 24*24 pixels, utilizing high-quality RGB LED lamp beads. It offers exceptional performance and reliability for outdoor applications.
Overviews
The P13.33mm DIP outdoor LED module is certified with CE, RoHS, and FCC, and is durable, waterproof, and delivers high brightness. Utilizing high-quality RGB LED lamp beads, this module ensures no damage to the lamps, uniform current distribution, and consistent brightness. It offers exceptional performance and reliability for various applications, ideal for outdoor LED displays.
- DIP LED module includes data & power cables.
- Driving by constant current, ensuring stable and efficient operation.
- Equipped with reliable Epistar LEDs, backed by 2 years warranty.
- Ships within 24 hours and includes free online support for technical assistance.
- High contrast ensures superior LED display quality.
1R1G1B
DIP
10000 nit
Brightness
32×32
Module Resolution
1/2 Scan
Driving Mode
Details

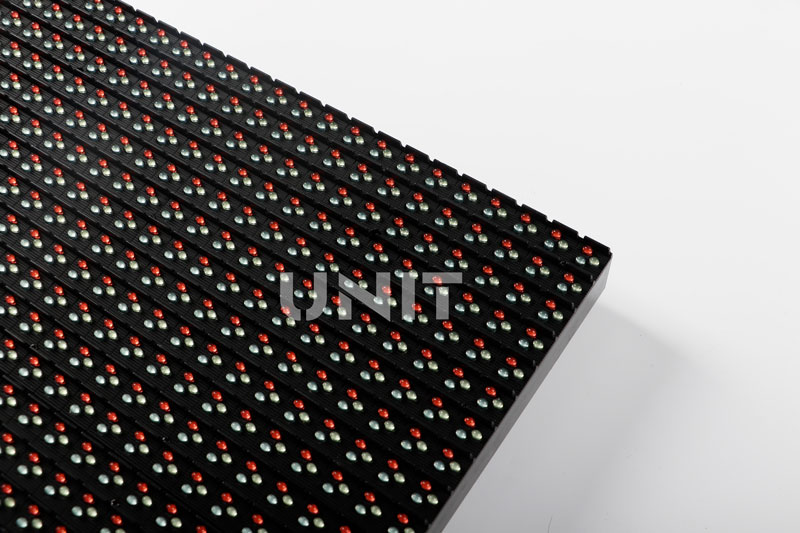

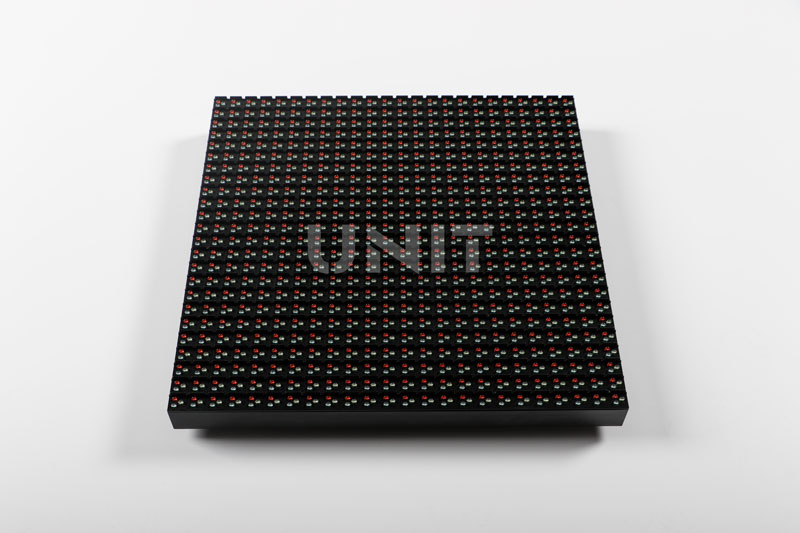

Front View

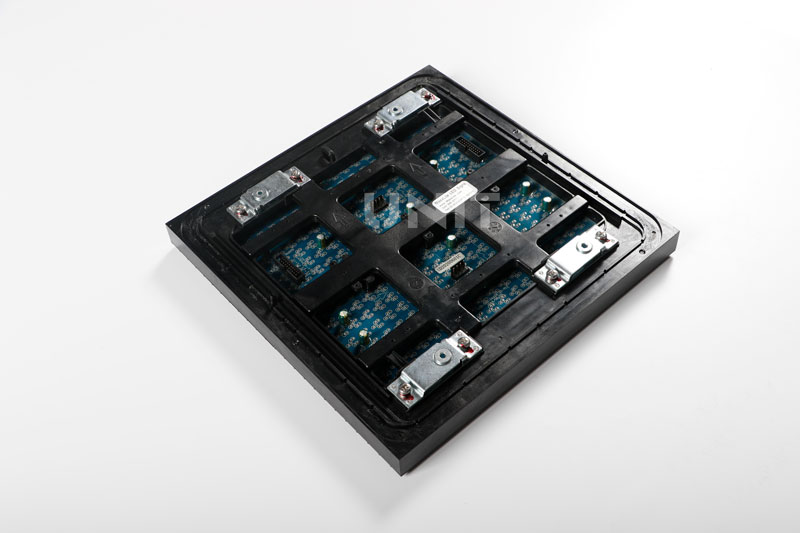

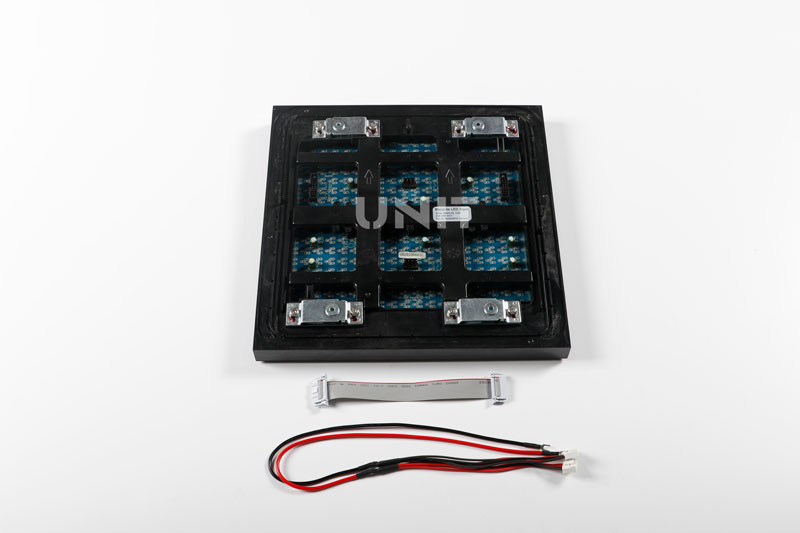

Back View
Specifications
| LED Module: | |
| Pixel Pitch: | P13.33mm DIP LED module |
| Module Size: | 320mmx320mm |
| Module Resolution: | 32×32 dots |
| Driver Mode | 1/2 Scan |
| Warranty Time: | 2 Years |
| Certificates: | CE, RoHS |
| Electricity Parameter: | |
| Physical density: | 5627 pixels/sq.m. |
| Brightness: | 10000 nit |
| Brightness adjusted: | 100 grade by software, or by Auto-optic-induced |
| Best view distance: | ≥ 10m |
| Best view angle: | Horizontal ±110°, Vertical ±110° |
| Color processing: | 16bit |
| Color temperature(k): | 5000 – 9500 (choice by user) |
| Whole display flatness: | ≤ 1mm juncture |
| Working temperature: | -20°C ~ +50°C |
| Refresh frequency: | ≥ 300Hz |
| Humidity(RH): | ≤ 90 ~ 95% |
| Protection grade: | IP65 Waterproof |
| Working Voltage: | DC 5V |
| Power supply: | AC 110 / 220V, 50/60Hz |
| Average power consumption: | 350 w/m2 |
| Max power consumption: | 800 w/m2 |
| Screen lifetime: | 100000 hours |
